Lift Out
A practical, cost-effective solution for windows that require occasional access with removable panels
Lift Out

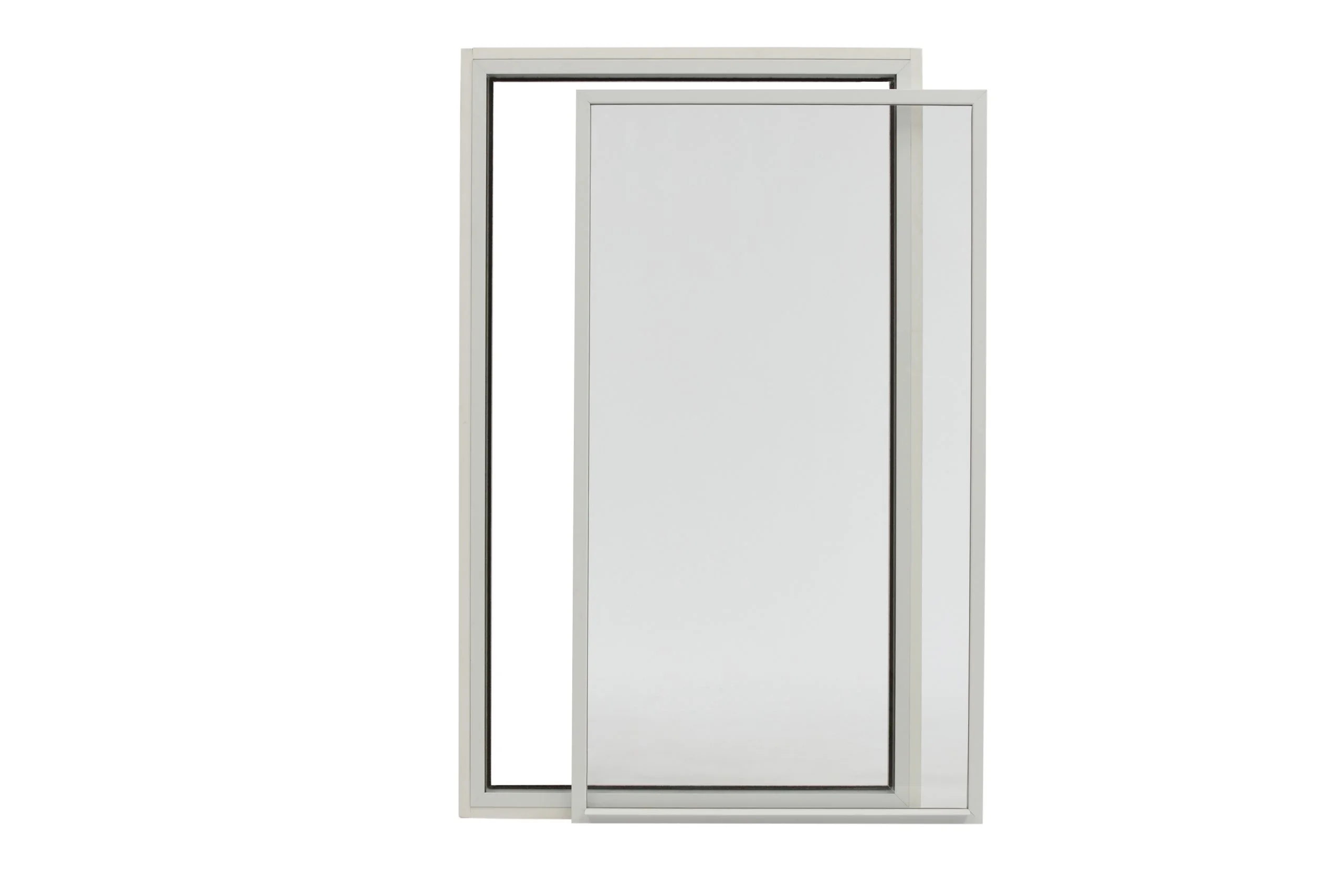

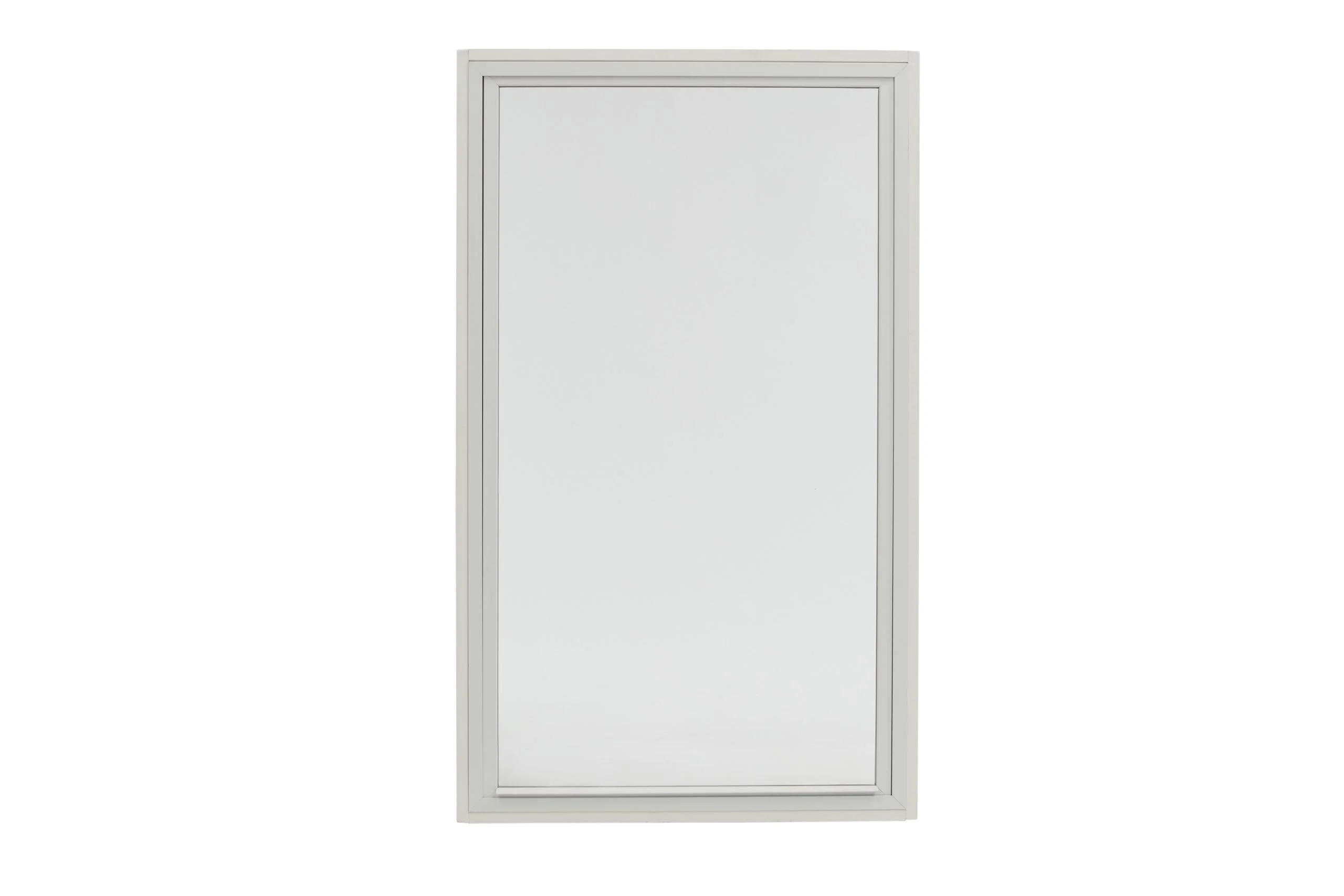

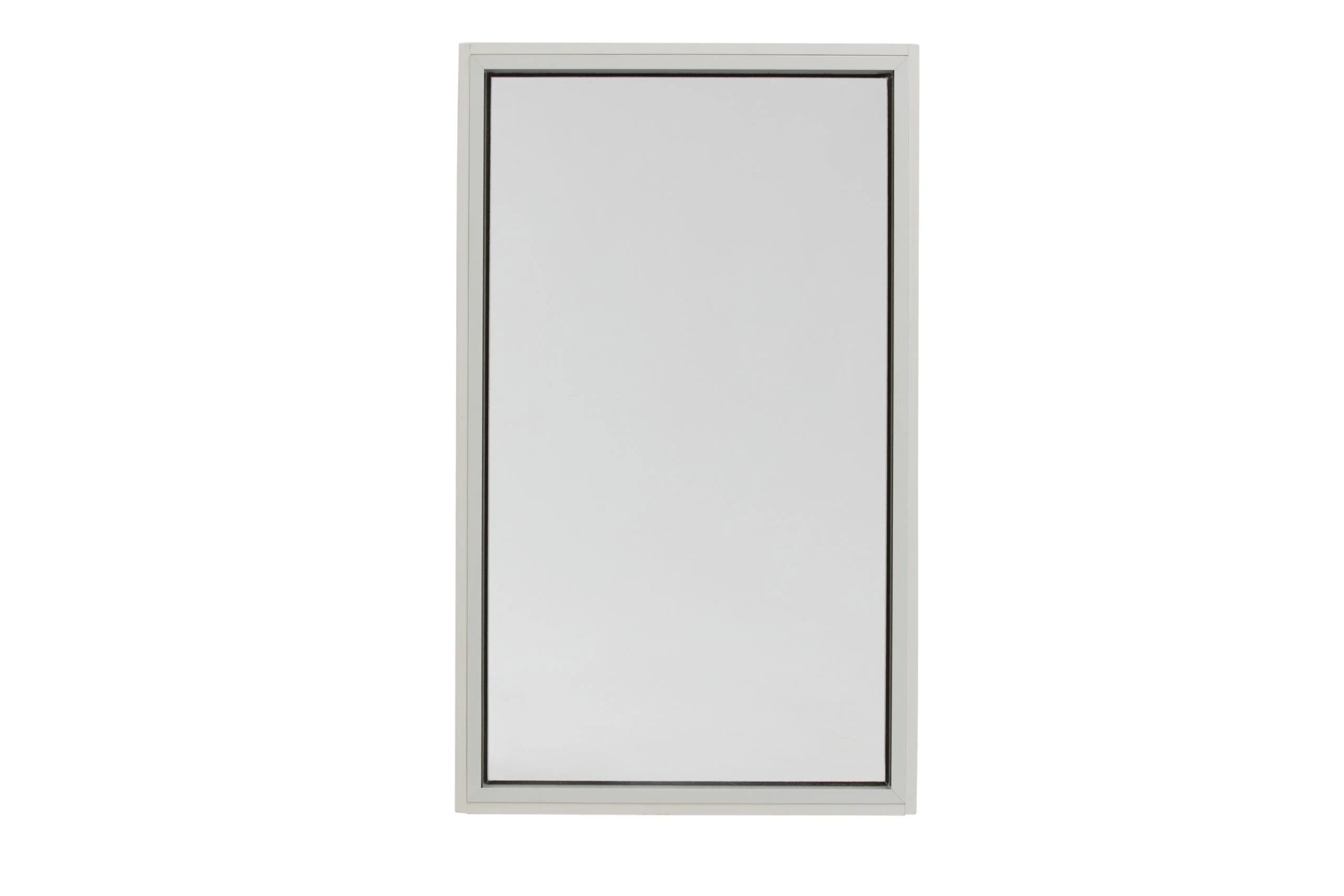

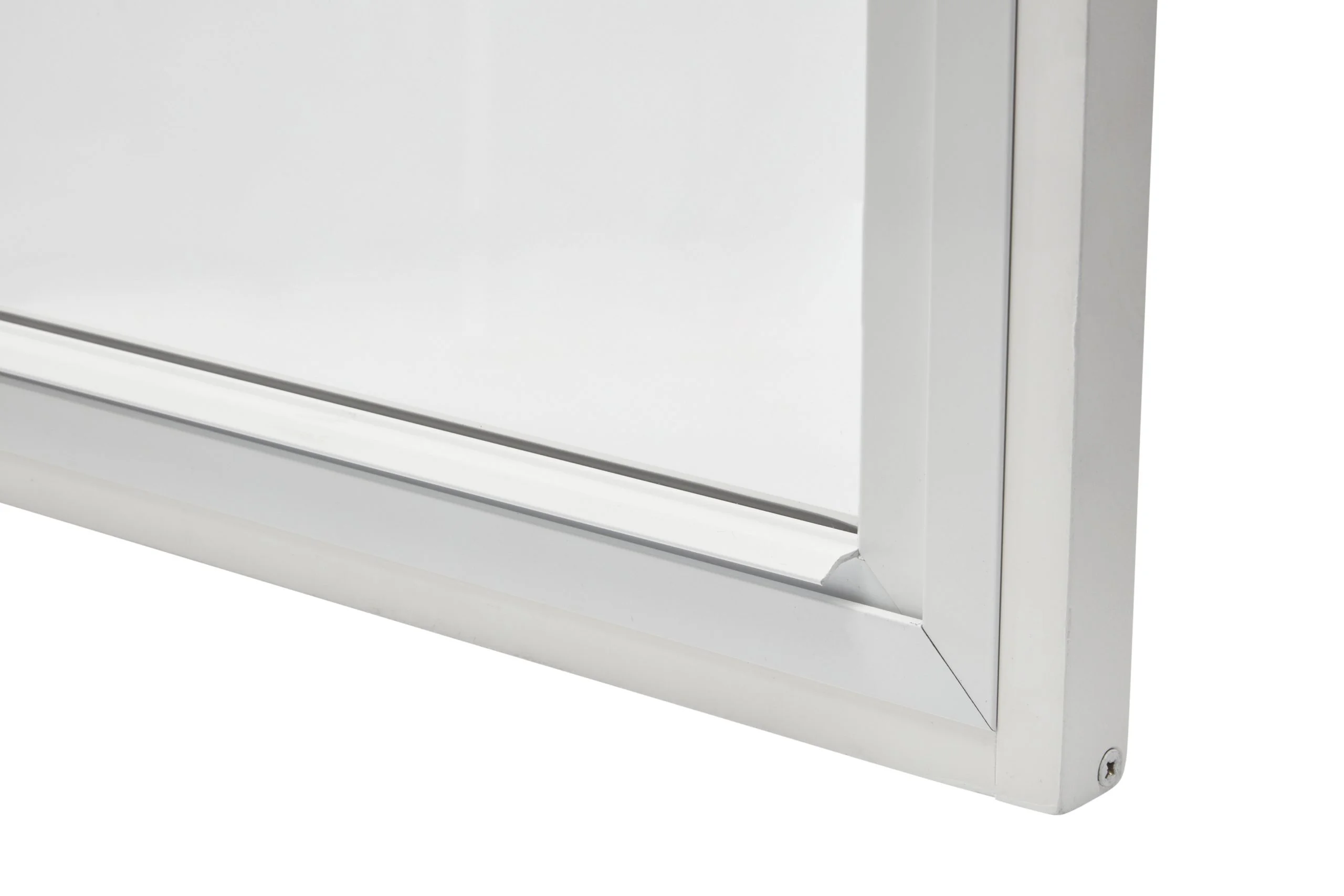

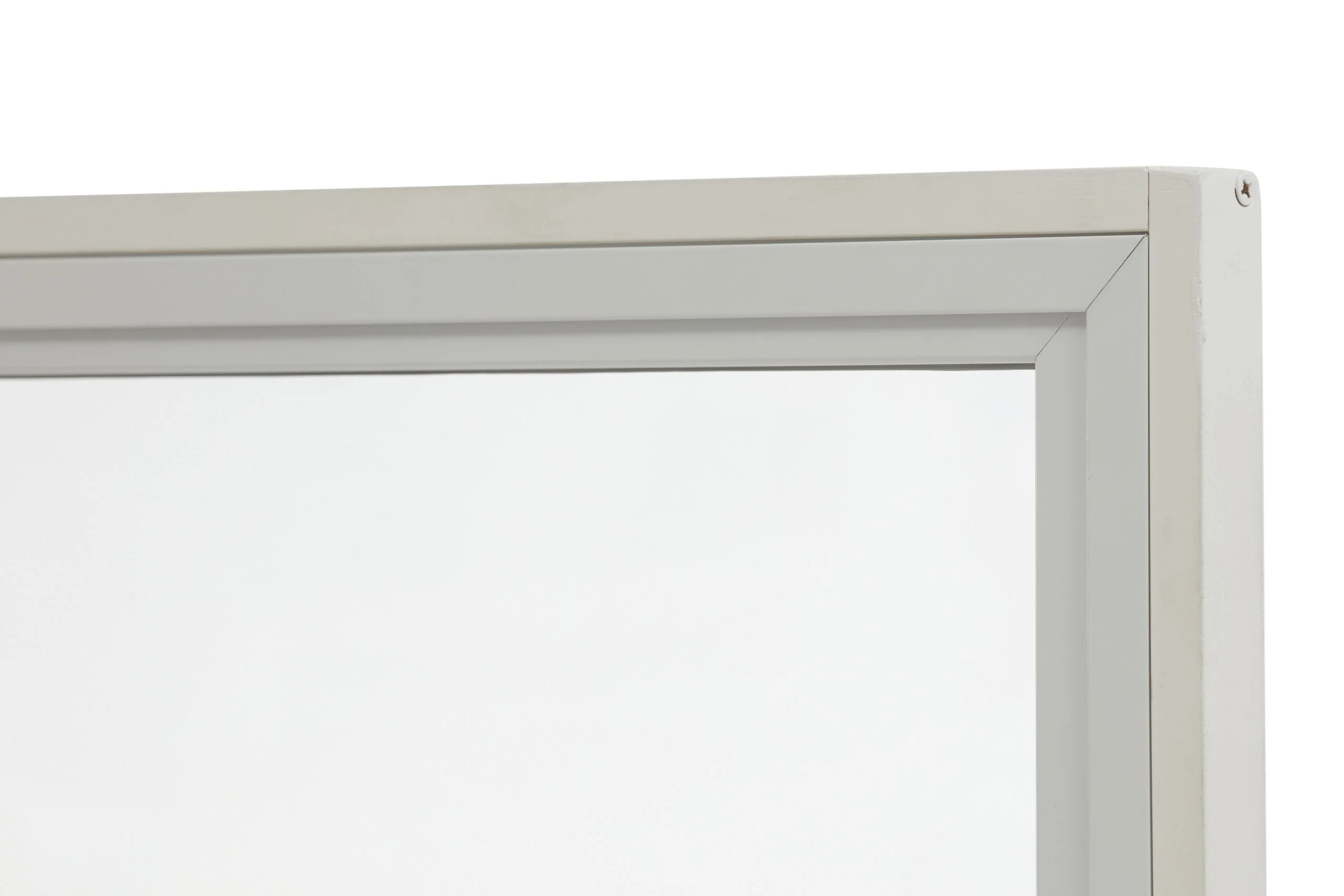

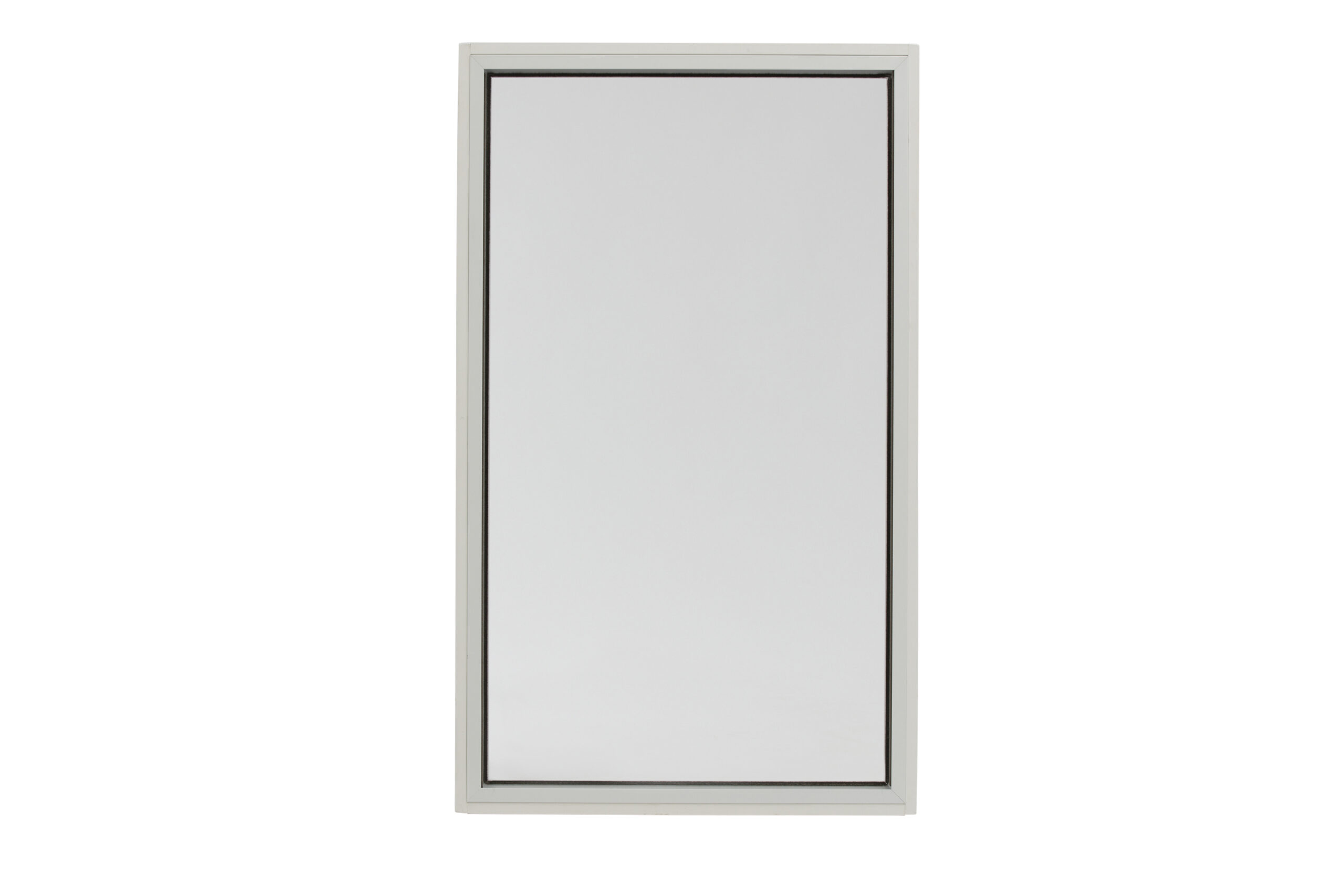

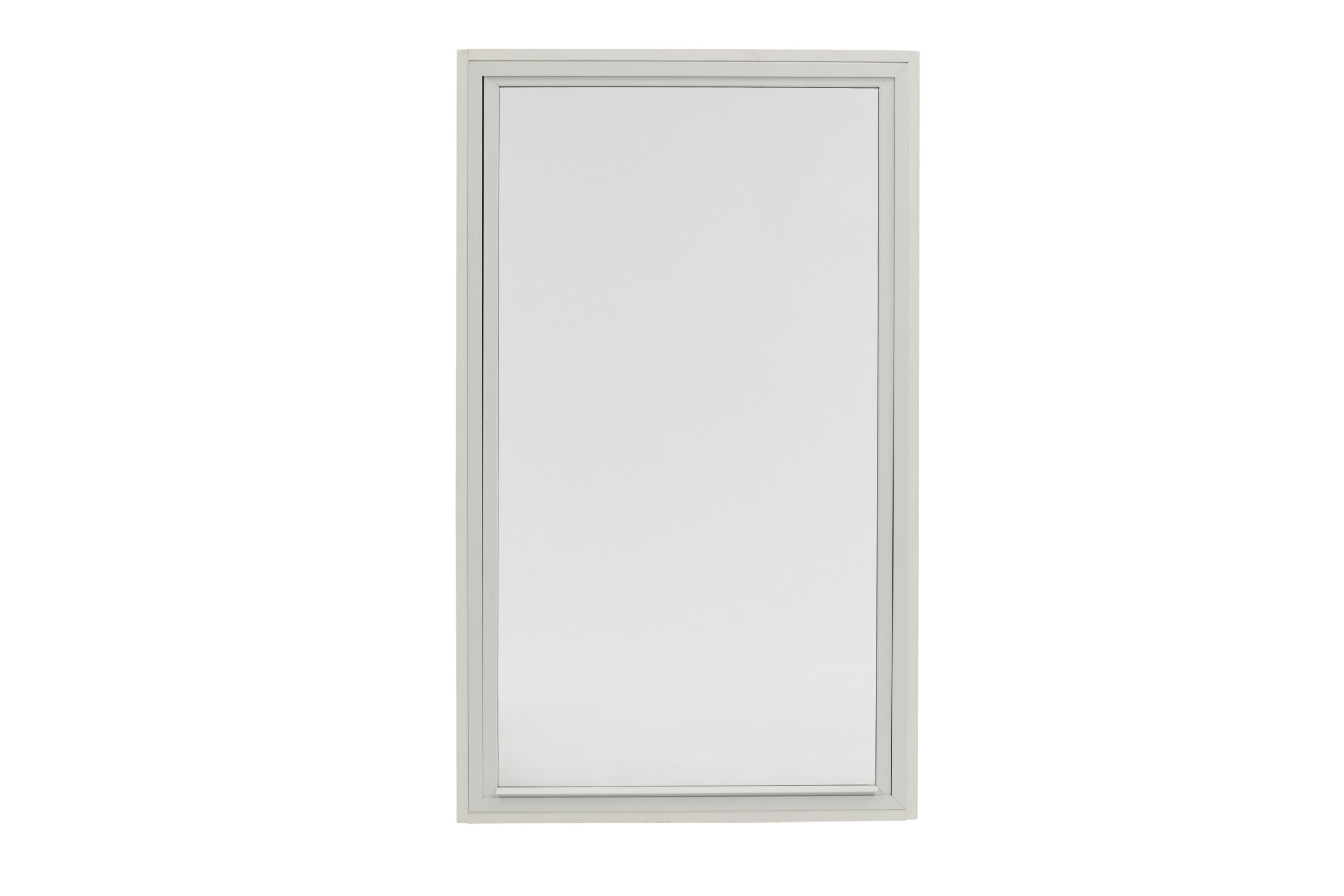

Granada lift-out units offer a practical, cost-effective solution for windows that require occasional access. Each removable panel sits within its own slimline aluminium frame and can be lifted out easily using the Easy Lift Fin.
Face-fixed or reveal-fixed, these units are ideal for decorative or non-opening windows, providing discreet, unobstructed views while enhancing acoustic and thermal performance. Perfect for both commercial and residential applications, lift-out secondary glazing combines convenience, durability, and a clean, unobtrusive design.
Ideal for both commercial and residential projects, lift-out units combine convenience, durability, and a clean, unobstructed view, offering a flexible secondary glazing solution tailored to your requirements.
Cost-Effective Solution
An economical solution for enhancing existing windows without significant alterations.
Shaped Window Compatible
Versatile for shaped or arched windows – suitable for complex openings and heritage applications.
Removable Panels
Allow simple access for cleaning and maintenance of the primary window.
Sizes
Note: all sizes are for guidance only, and depend on several factors (including glass and subframe). Units and styles outside of those listed are sometimes possible – please contact us for advice.
Lift Out Range
| Style | Max Width | Max Height | Max Weight |
|---|---|---|---|
| LO Lift Out Unit | 3,220mm | 3,307mm | 50KG |
Installation Options
| Product Range | Glass Options | Max. Window Size (Including 16mm Timber) | Installation Options | |||
|---|---|---|---|---|---|---|
| Width (mm) | Height (mm) | Area (m²) | Face Fix Through Timber | Reveal Fix Through Frame | ||
| Classic | 4.0mm tough | 2070 | 2057 | 1.7 | TIM-25×16 | TIM-25×16 |
| Enhanced | 6.0mm tough | 3220 | 3307 | 3.6 | TIM-25×16 | TIM-25×16 |
| Enhanced | 6.4mm Laminate | 3220 | 3307 | 3.4 | TIM-25×16 | TIM-25×16 |
| Enhanced | 6.8mm Laminate | 3220 | 3307 | 3.2 | TIM-25×16 | TIM-25×16 |
| Enhanced | 8.8mm Laminate | 3220 | 3307 | 2.5 | TIM-25×16 | TIM-25×16 |
| Enhanced | 10.8mm Laminate | 3220 | 3307 | 2.0 | TIM-25×16 | TIM-25×16 |
Colours
Our Sheffield-based manufacturing base is home to our very own painting plant, allowing you to choose from a comprehensive palette of more than 200 powder-coated RAL colours to achieve a precise match with your Granada secondary glazing system. Suitable for new developments, heritage buildings, and complex commercial environments, our finishes are specified to meet the requirements of each project.
Glass Options
| Product Range | Glass Options | Max. Panel Weights (kgs) | Min. Panel Size (mm) | Max. Panel Size (mm) | Max. Panel | Max. Panel | ||
|---|---|---|---|---|---|---|---|---|
| Width | Height | Width | Height | Area m² Must not Exceed | Aspect Ratios Max Width to Height Ratio | |||
| Classic | 4.0mm tough | 15 | 125 | 250 | 2000 | 2000 | 1.5 | N/A |
| Enhanced | 6.0mm tough | 50 | 125 | 250 | 3250 | 3250 | 3.3 | N/A |
| Enhanced | 6.4mm Laminate | 50 | 125 | 250 | 3250 | 3250 | 3.1 | N/A |
| Enhanced | 6.8mm Laminate | 50 | 125 | 250 | 3250 | 3250 | 2.9 | N/A |
| Enhanced | 8.8mm Laminate | 50 | 125 | 250 | 3250 | 3250 | 2.3 | N/A |
| Enhanced | 10.8mm Laminate | 50 | 125 | 250 | 3250 | 3250 | 1.9 | N/A |
Product Case Studies

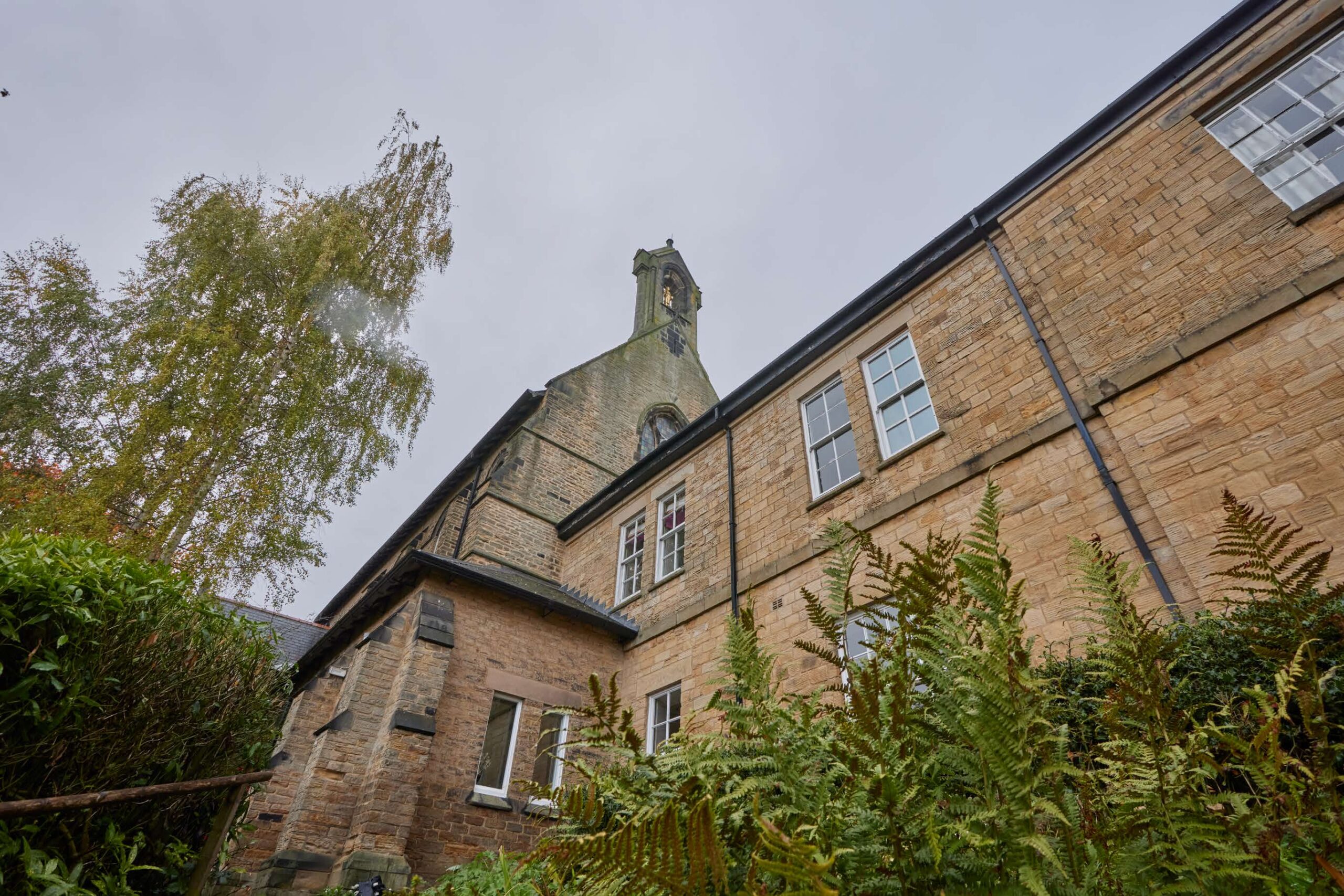

Sheffield Buddhist Centre
Secondary glazing was installed at the Sheffield Buddhist Centre to improve thermal performance, reduce draughts, and lower the building's carbon footprint. The system sits discreetly within the existing window reveals, preserving the historic frames and complying with listed-building conservation requirements. The installation has increased occupant comfort, particularly in the Great Hall, while protecting the building's heritage fabric.
Compton House, Hay-on-Wye
Secondary glazing was installed at Compton House, a Grade II listed townhouse within the Brecon Beacons National Park conservation area, to improve thermal and acoustic performance across five residential flats. The solution enhanced occupant comfort, reduced noise intrusion, and delivered a cost-effective upgrade while retaining the original single-glazed timber sash windows and preserving the building's historic fabric.
Read full case study
Horizontal Sliding
Smooth sliding panels for easy access and cleaning, ideal for wide window spans.
Best For: Modern and versatile spaces where easy access and style are key.
Learn More
Vertical Sliding
Tilt-to-clean functionality, easy access, smooth sliding operation, effective thermal and acoustic insulation.
Best For: Heritage properties with traditional sash windows requiring discreet solutions.
Learn More
Hinged Unit
Side or base-opening configurations with multi-point locking for enhanced security.
Best For: Commercial and residential applications requiring door-like operation.
Learn More
Fixed
Non-opening solution for permanent installations with maximum acoustic and thermal performance.
Best For: Windows that don't require regular access for cleaning or ventilation.
Learn More- Van Dyke Brown (BS 08 B29, Satin)
- Cream (RAL9001, Satin)
- Grey (RAL7016, Satin)
- Black (RAL9005, Satin)
- Granada White (RAL9003, Satin)
To ensure short lead times and offer maximum flexibility, Granada has invested in an in-house powder coating line. This allows us to provide fully customisable aluminium frames in over 200 RAL colours, giving customers the freedom to match any design aesthetic while maintaining the durability and performance expected from our secondary glazing systems.
Should you experience any issues, our dedicated customer care team is available to assist. Please contact us on 01909 499 899 for support and advice.
